High power metal base LED signal light,led light module,led headlight module,led warninglight module
Description:

The series utilizes Six (6) GEN IV 3-Watt LEDs per unit for an extreme light output and is available in bothsolid and split colors.This light also comes with 22 flash patterns to choose from which can flash simultaneous or alternatingcolors as well as synchronization capabilities for an intense and impossible-to-miss set-up.Small enough to mount virtually anywhere on your vehicle, the included black mounting flange andhardware make installing this light quick and easy.It is fully encased in an epoxy covered flasher making it waterproof and keeping it safe from whateverweather conditions come your way.Four (4) standard connecting wires (Positive, Negative, Sync, Pattern) allow you to easily integrate thisseries lights into your vehicle's lighting system.Voltage: 12V/24VDCAvailable Colors: Red,Blue,Amber,White,Green or Combine color.

Feature:

1. over 22 kinds of flash patterns and can flash simultaneous or alternating.

2.Size Small enough to mount virtually anywhere on your vehicle.

3. Metal base for better heat dissipation and to make the performance more stable and reliable.

It can be TIR6, LIN6 lens clusters.

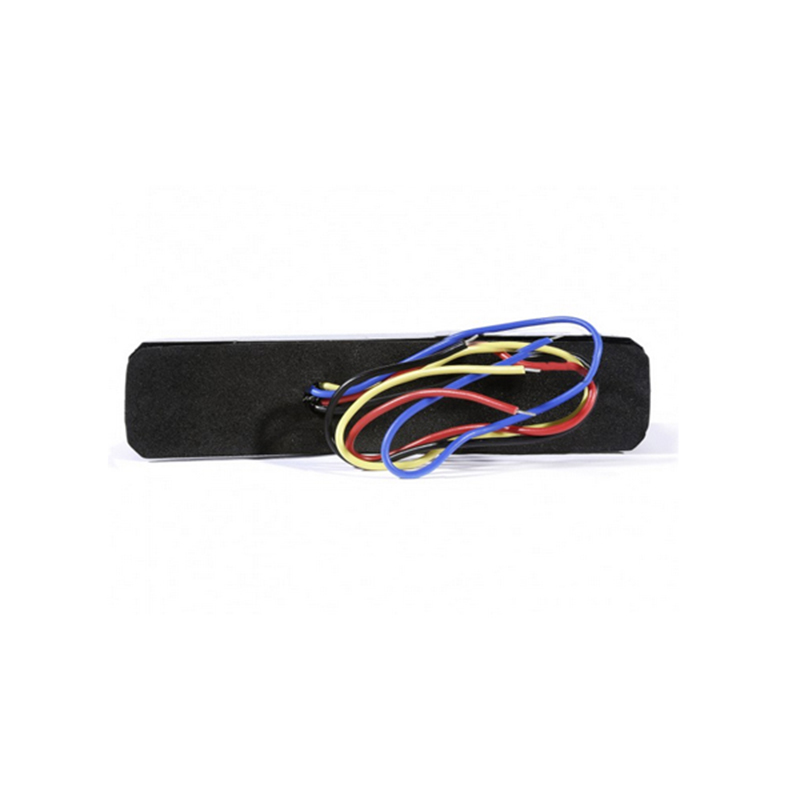

Red-------To +VDC(fuse @3A)
Black------To Chassis Ground
Yellow-----Synchronization
          ******Connect Yellow wires of all heads together for synchronization
          ******All heads must be on same flash pattern to be able to sync
Blue--------Pattern selection
           ****** To select Flash patterns, apply blue to black
           ****** Less than 1 seconds for steady burn
           ****** About 3-5 seconds for steady burn
           ****** More than 5 seconds to turn off

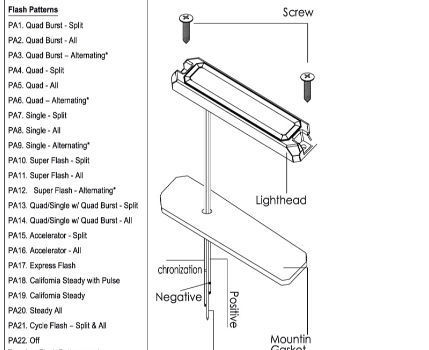

INSTALLATION & FLASH PATTERNS AS DIAGRAM.

This light can be widely used in public security, fire, ambulance, engineering vehicles and other special fields.

For more information, please contact us right now, wechat/whatsapp: +86 18968705678/  Skype: cnkoren, email: sales@koren.cn

Shipping Information:

• FOB Port:Ningbo

•

• Lead Time:5 - 7 days

• HTS Code:8512.20.90 00

•

• Dimensions per Unit:5.1 × 1.1 × 0.71 Inches

• Weight per Unit:0.2 Kilograms

•

• Units per Export Carton:1

• Export Carton Dimensions L/W/H:5.4 × 1.2 × 1.2 Inches

•

• Export Carton Weight:0.1 Kilograms
