Higher power LEDs grille lights and Surface Mounted Lights, LED lighthead
Description:

This Series Grille Light is SAE and ECE R10 approved and has been thoroughly tested to perform intoughest climates and road conditions. It boasts TIR4 or TIR6 LED clusters with 22 flash patterns for multi-purpose use with simultaneous flash, alternating colors, and synchronization capabilities.. It's alsovibration resistant so performance isn't compromised in harsh terrain.Select either a solid or split color option. Choose from five solid colors (red, blue, white, amber, and green),or select from one of six dual color units to meet your needs.Select the optional L bracket for an additional mounting option for your vehicle.Four standard connecting wires (Positive, Negative, Sync, Pattern) allow you to easily integrate this serieslight into your vehicle's lighting system.Voltage: 12V/24VDCAvailable Colors: Red,Blue,Amber,White,Green or Combine color

Feature:

Base: Aluminum
Lens: Polycarbonate
LEDs per head: 4
Voltage: 10-30VDC
Max Current Draw : 1.0AMP for12VDC / 0.5AMP for 24VDC
Max Power: 12 Watt
Flash Patterns: 10
Single Colors: Amber/ Blue/White/Green/ Red

Feature:

Base: Aluminum
Lens: Polycarbonate
LEDs per head: 4
Voltage: 10-30VDC
Max Current Draw : 1.0AMP for 12VDC / 0.5AMP for 24VDC
Max Power: 12 Watt
Flash Patterns: 10
Single Colors: Amber/ Blue/White/Green/ Red

Feature:

Base: Aluminum
Lens: Polycarbonate
LEDs per head: 4
Voltage: 10-30VDC
Max Current Draw : 1.0AMP for 12VDC / 0.5AMP for 24VDC
Max Power: 12 Watt
Flash Patterns: 10
Single Colors: Amber/ Blue/White/Green/ Red

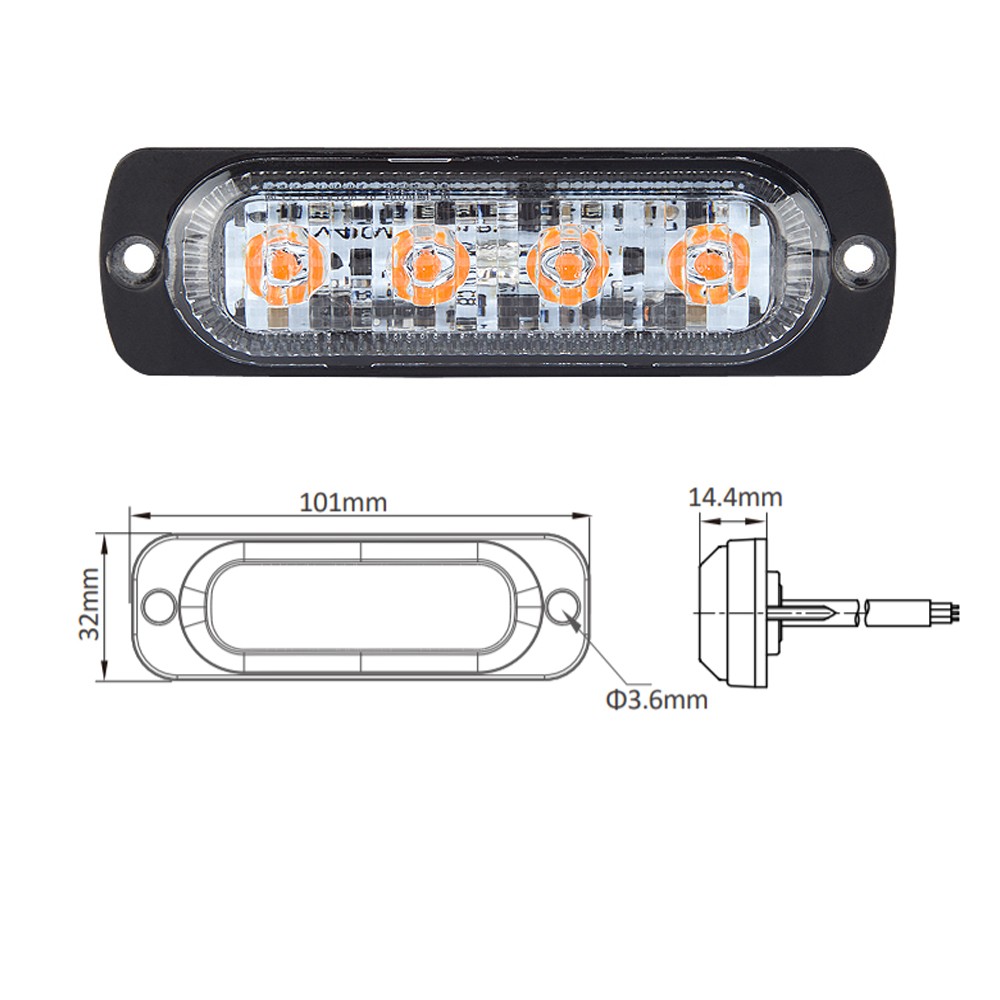

Drawing for 141 /TIR4 clusters

Drawing for 161 /TIR6 clusters

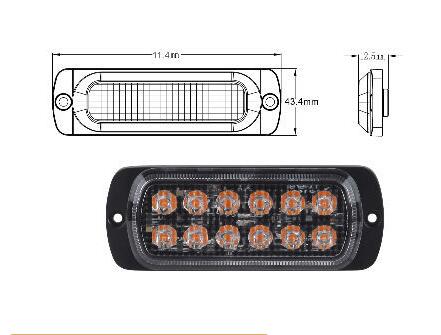

Drawing for 212 /TIR12 clusters

Shipping Information:

• FOB Port:Ningbo

•

• Lead Time:10 - 15 days

• HTS Code:8512.20.90 00

•

• Dimensions per Unit:4 × 1.26 × 0.56 Inches

• Weight per Unit:0.15 Kilograms

•

• Units per Export Carton:50

• Export Carton Dimensions L/W/H:4 × 1.26 × 0.56 Inches

•

• Export Carton Weight:1 Kilograms
