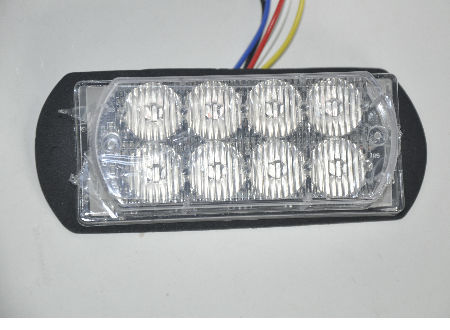

Higher power LEDs grille lights and Surface Mounted Light modules,led light modules  Description:The high intensity LED Marker light is made of Generation 3 1W LED's. It is very high quality bright
light; highly visibility with low power currency usage, prolongs a long life. It has multiple kinds of flash

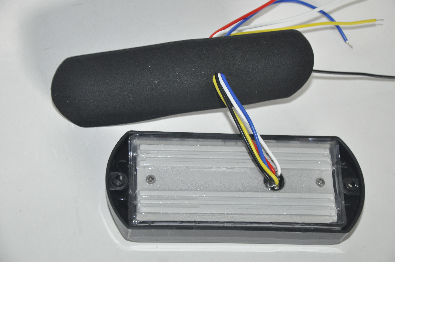

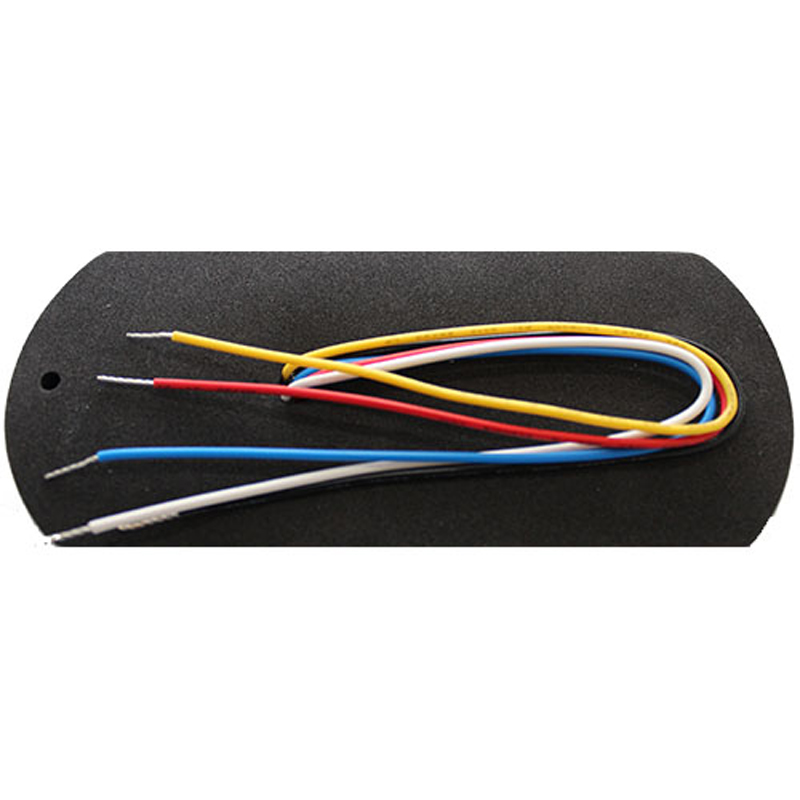

patterns. It uses a microcomputer programming chip. The LED Marker Light is mostly used for emergency vehicles like ambulance-, police-, traffic-, fire fighting services. Other users like towing-, recovering-, and construction vehicles, it's proofed for water, weather, and intense vibration.It can be mounted just about anywhere by screws directly. They are built to lastthrough even the toughest jobs.Voltage: 12V/24VDCAvailable Colors: Red,Blue,Amber,White,Green or Combine color.5 wires for simple set-up (1 pos,1 Neg,1 Sync,1 Pattern,1alternate).PC housing and aluminum plate base.

Technical parameter:

1. Working voltage: □12V(DC11V~15V)

                   □24V(DC21V~26V)

1. Ambient temperature: - 40℃~+50℃

2. Warning light color: □red; □amber; □blue;

□clear; □green

1. Power supply way: Constant voltage current control

2. Waterproof and shakeproof

3. Flashing patterns: 26 flash patterns

      H:  Surface and Screw mounted.

 Mounting

A. Place the unit against the mounting surface.

B. Mark the areas where the mounting holes are to be drilled.

To make sure that no vehicle parts could be damaged by drilling process.

C. Using the sheet metal screw to drill two mounting holes.

D. Route the wires through the wire passage hole in the mounting surface, Secure the mark light to the mounting surface using the hardware provided.

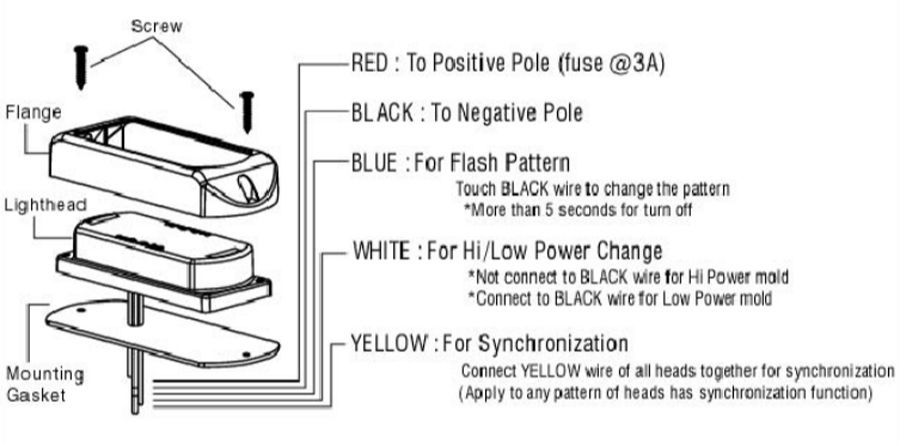

Wiring

See illustration below for wiring information

Shipping Information:

• FOB Port:Ningbo

•

• Lead Time:7 - 8 days

•

• HTS Code:8512.20.90 00

•

• Dimensions per Unit:5.29 × 2.1 × 1 Inches

•

• Weight per Unit:0.2 Kilograms

•

• Units per Export Carton:1

•

• Export Carton Dimensions L/W/H:5.4 × 2.5 × 2.3 Inches

•

• Export Carton Weight:0.1 Kilograms
