LED mini lightbar, warning lightbar, Emergency Vehicle Mini Light Bars Key Specifications/Special Features:

Description:

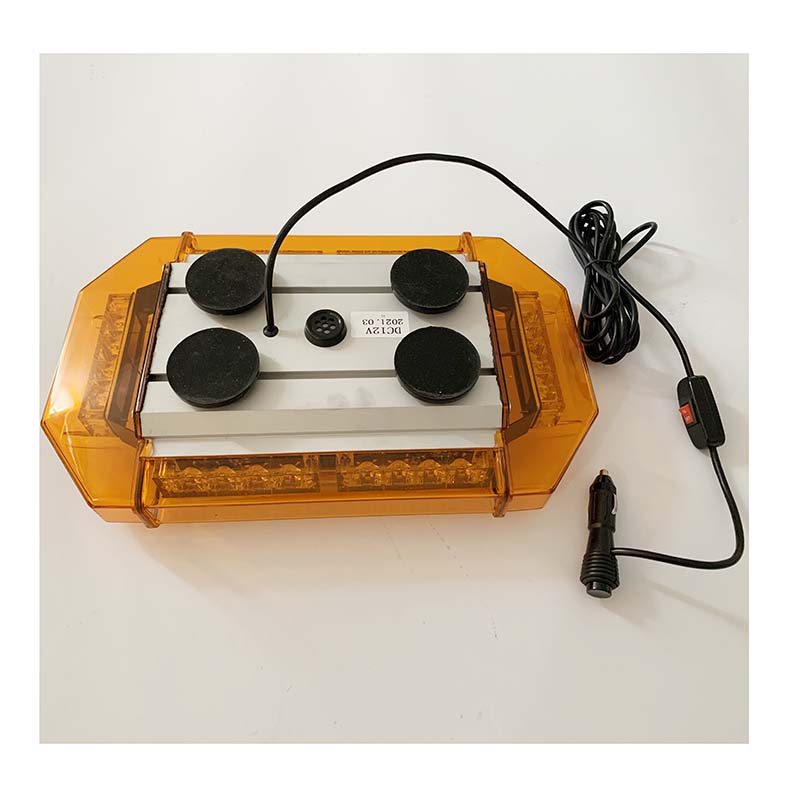

LTF8922 low profile LED mini bar is made of high brightness LED, it use microcomputer programming chip, It has high brightness, low power loss, long life and so on the merits, it is equipped with a solid state flasher. The flasher has 5 flash patterns including random. To change flash pattern, press the momentary switch (locate on the lighter plug adaptor). Each time the momentary switch is pressed, the flash pattern will change once. It suit install in automobile vehicle.

1. Technical parameter:

A.Working voltage: □DC12V(range DC11V~15V)

                   □DC24V(range DC21V~26V)

B.Consume electric current: TBD-a670≤6A, TBD-a440≤3.6A

C.Ambient temperature: - 40℃~+50℃

D.Warning light color: □red; □amber; □blue; □clear; □green

E.Continuous working time: 4 hours

F.Waterproof and shockproof

G.Flash patterns:

Double alternating

Quad alternating

Single alternating

Double simultaneous

Random
