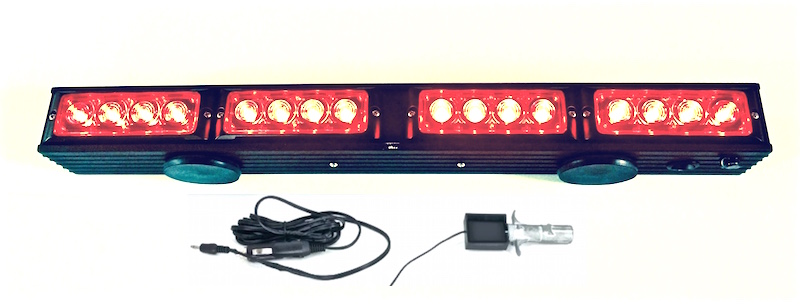

LED wireless tow light 21.5" Wireless LED Tow Light Bar with Red Stop/Tail/Turn Signal LEDs, High Power Magnetic Base and 4pin Round Transmitter
Description:

System Features:

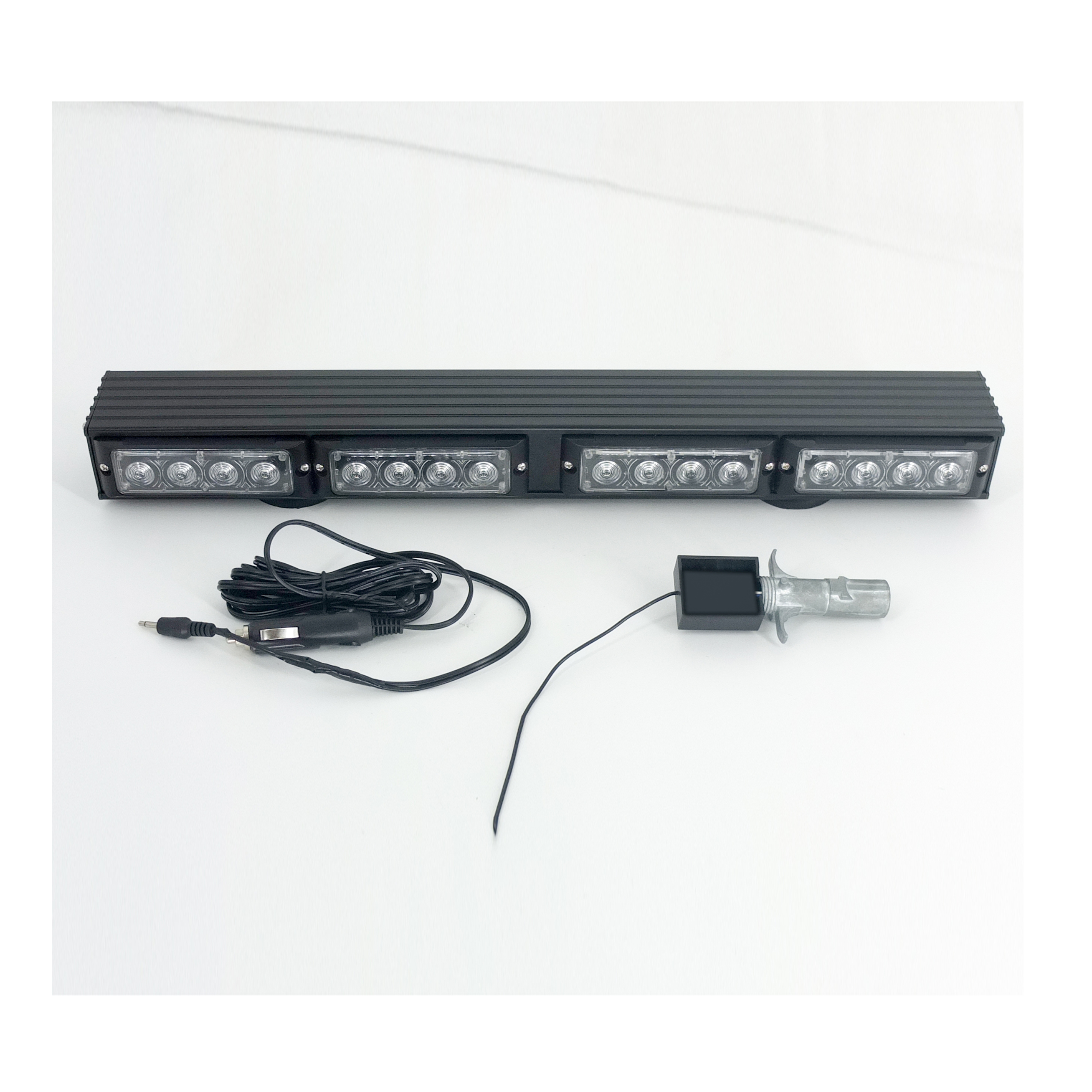

Your complete system should include:
oThe Light, Transmitter (the sending unit that plugs into the truck), and a Cigarette Lighter Charge Cord (DC charger).
High performance electronics provide optimum range and reliability.
o1,000 feet of 'line-of-sight' range.
oSteady,Left chaser ,Right chaser,reverse and brake more bright.
oInjection molding keeps the electronics completely sealed from the elements such as moisture, corrosion, or vibration damage.
Lifetime Warranty
oCovers Electronics and LED's
If ever the light fails to get a signal or an LED burns out, We  will replace the defective component at no cost.

Feature:

1. High performance electronics provide optimum range and reliability.

• 1,000 feet of ‘line-of-sight’ range.

• Steady,Left chaser ,Right chaser,reverse and brake more bright .

• Injection molding keeps the electronics completely sealed from the elements such as moisture, corrosion, or vibration damage.

• The Light, Transmitter (the sending unit that plugs into the truck), and a Cigarette Lighter Charge Cord (DC charger).

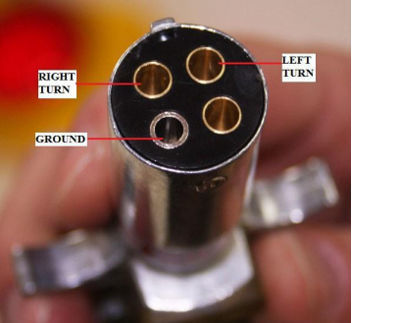

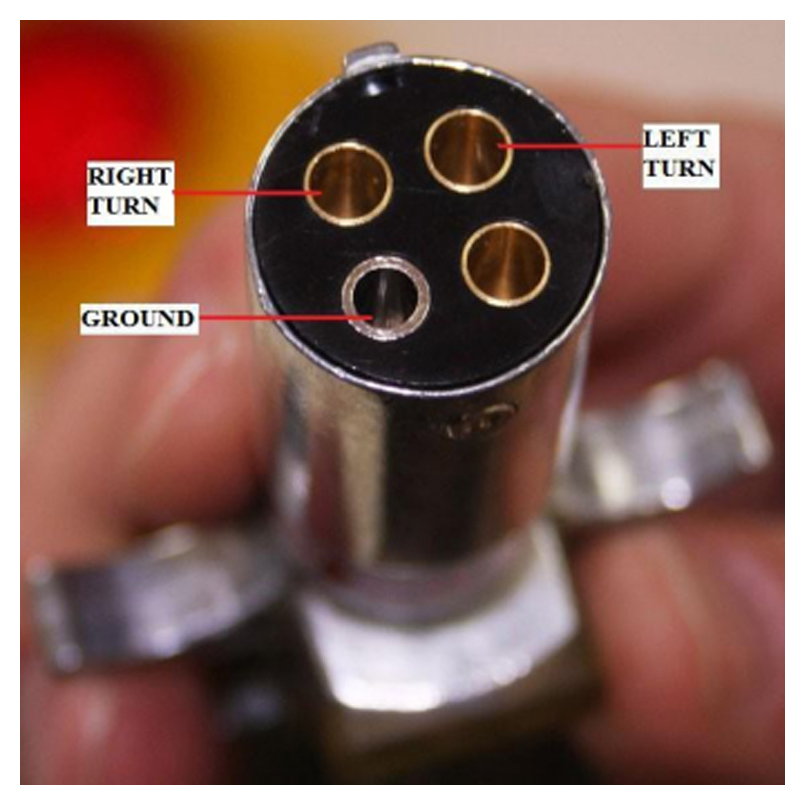

4-Pin Wiring

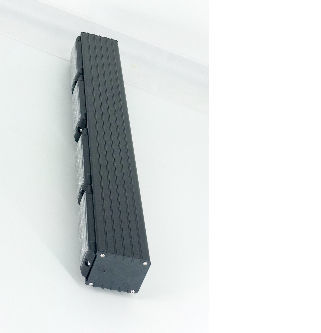

Side view

Transmitter (the sending unit that plugs into the truck)

General Operating Tips:

1. First, plug the transmitter into the receptacle on the truck.

2. Power the light on by flipping the On/Off switch to the ‘On’ position.

1. The light will go through a brief flash sequence indicating what series of electronics are in the unit (useful when servicing or replacing parts).

1. The Light should now be fully operational for Wireless S/T/T signals.

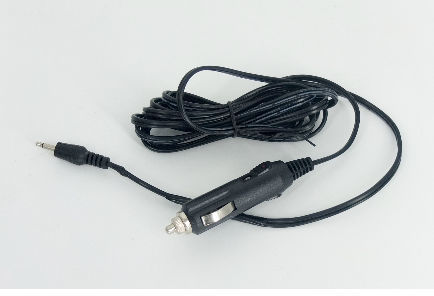

2. Use the 12VDC power cord provided to recharge the unit.

1. If a battery dies prior to the expected 12 month lifetime, we may choose to warranty (generally under 6 months), or pro-rate (6- 12 months), the replacement.

2. If your light appears to have a low battery or will not take a charge, be sure that the fuse in the tip of the charge cord plug is still intact. If it is blown, replace with a 10-20 amp fuse.

1. It takes 6-8 hours to fully recharge the battery in the light.

2. You cannot overcharge the unit off of the trucks 12V system.

3. The battery in the unit should have a total life of 1-2 years.

4. Working time 20-24 hours (full charge)

5. Power of towlight 3.2w

6. Wireless transmission 20-50m

7. Frequency of transmitter 433mhz

3. Always check to be sure that the light is securely fastened to the load you are hauling.







4.

5.

Shipping Information:

• FOB Port:Ningbo

•

• Lead Time:7 - 8 days

•

• HTS Code:8512.20.90 00

•

• Dimensions per Unit:21.7 × 2.96 × 2.76 Inches

•

• Weight per Unit:2 Kilograms

•

• Units per Export Carton:1

•

• Export Carton Dimensions L/W/H:21.7 × 2.96 × 2.76 Inches

•

• Export Carton Weight:0.3 Kilograms
