Key Specifications/Special Features:

Description:This Series Grille Lights have been rigorously tested to handle all weather and road conditions. Rain, snow, hail, ice, salt, sleet and mud are no match to our lightheads. comes with 23 flash patterns that can be synchronized with other B-series lights. Ideal forprofessionals, these lights are proofed for water, weather, and intense vibration.It can be mounted justabout anywhere with optional L brackets. They are built to last through even the toughest jobs.Voltage: 12V/24VDC Available Colors:Red,Blue,Amber,White,Green or Combine color.5 wires for simple set-up, this series light can be in different size and boasts 3leds (1 pos,1 Neg,1 Sync,1 Pattern,1Hi/Lo).PC housing and aluminum plate base.Dimensions: Length: 3.75"/ 5.64"/7.6"; Width: 2" ; Depth: 1"

^Feature:

This series headlight flasher is made of high brightness LEDs, it uses microcomputer programming chip, and constant voltage circuit design, It has high brightness, low power loss, long life and so on the merits, it has a lot of kinds of flash pattern offer to choose and power off memory function. suit install in automobile vehicle.

LED clusters:

can boasts TIR3 or LIN3 LEDs

LED clusters with over 22 flash patterns that can be synchronized with other B-series lights.

Wiring and Installation:

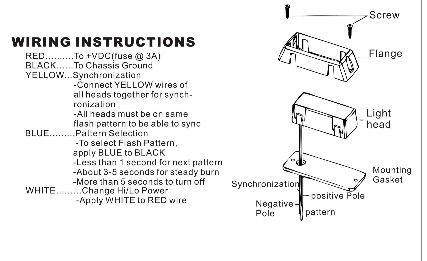

See illustration diagram for wiring information;

WARNING! All customer supplied wires that connect to the positive terminal of the battery must be sized to supply at least 125% of the maximum operating current and at the battery to carry the load. DO NOT USE CIRCUIT BREAKER SWITCH THIS PRODUCT!
